- PERFECT FOR MARINE APPLICATION, THESE OUTSTANDING CUBE LED WORK LIGHTS REALLY PACK A PUNCH! -

DESCRIPTION

GIANT SLAYING PERFORMANCE

Explosive performance, hence the name C-4. The instructions to our engineers were to hold nothing back, the goal was to produce the most powerful cube light on the market. Mission accomplished. Now the adventure doesn’t have to stop when the sun goes down thanks to class-leading CREE XM-L2 emitter producing 4,200 lumens of light intensity

STEDI C4 LED Flood Light Night Shot

3 BEAM OPTIONS

The C4 comes in 3 variations of beam options to help you build the perfect lighting built up for the required application. Spot, flood or diffused. Each with their own field of usage whether you want to add some extra light off to the sides of the vehicle whilst driving or around the vehicle as work/camp lights.

C4 Marine White Beam Types

COLOURED FILTERS INCLUDED

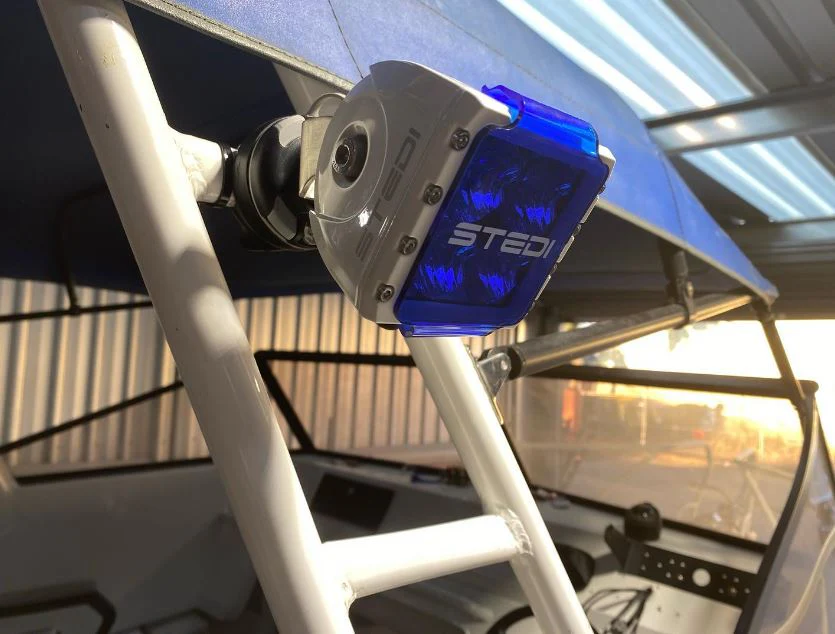

Included at no additional cost 3 x snap-on filters including 1 x blue filter (cuts down glare in reflective environments) 1 x yellow filter (cuts through fog and dust particles) 1 x STEDI black translucent filter – Instantly increase street credibility.

C4 Filter Covers

VIDEO

THE NERDY TECH STUFF

DETAILS

4 x CREE XM-L2 5700K

Environmentally sealed and molded Deutsch DT-2 connector with male wire tail included

RFI and EMI suppressed circuity ensure no interference with sensitive radio equipment.

Fitted with Gore Breather Vent – Certified IP68 | Submersible to 3m

304 Series Stainless Steel Bracket and Fasteners

Beam Characteristics

Spot beam: Relentless, in fact we’re still shocked every time we turn it on it – Potent enough to take on the task of stealth driving light.

Diffuse Spread: A homogeneous flood beam which is smooth almost cloudy in light distribution making it an ideal near-field work-light, reverse or camp light.

Wide Beam: The wide beam produces a deeper flood beam in comparison to diffuse, better suited to application require a longer throw flood beam.

SPECIFICATIONS

LED POWER OUTPUT	4 x 10w LEDs
LUMENS	4,200Lm
OPERATING VOLTAGE	12v & 24v Compatibility
IP RATING	IP68
LED	CREE XML2
COLOUR TEMPERATURE (CCT)	5700K
MATERIAL	Die Cast Aluminium Housing
LENS	Lexan Optical
MOUNTING BRACKET	Stainless Steel U-Bracket
BOLTS AND FITTINGS	Included
BEAM TYPE	Flood
LIFE SPAN	50,000 Hours
AMP DRAW	2.1A @ 13.6v
WEIGHT	0.550kg

C4 Exploded Dimensional Drawing

C4 Dimensions

C-4 Cube LED Work Light Flood Beam Lux Graph

5700 Kelvin (Pure White)

WHAT'S IN THE BOX

1 x C4 Marine Spec LED Flood Light
Blue Transparent Cover
Black Transparent Cover
Yellow Transparent Cover
Stainless U Mounting Brackets
Mounting Hardware
Male and Female Deutsch Connectors
Vibration Dampener

C-4 Cube Lights

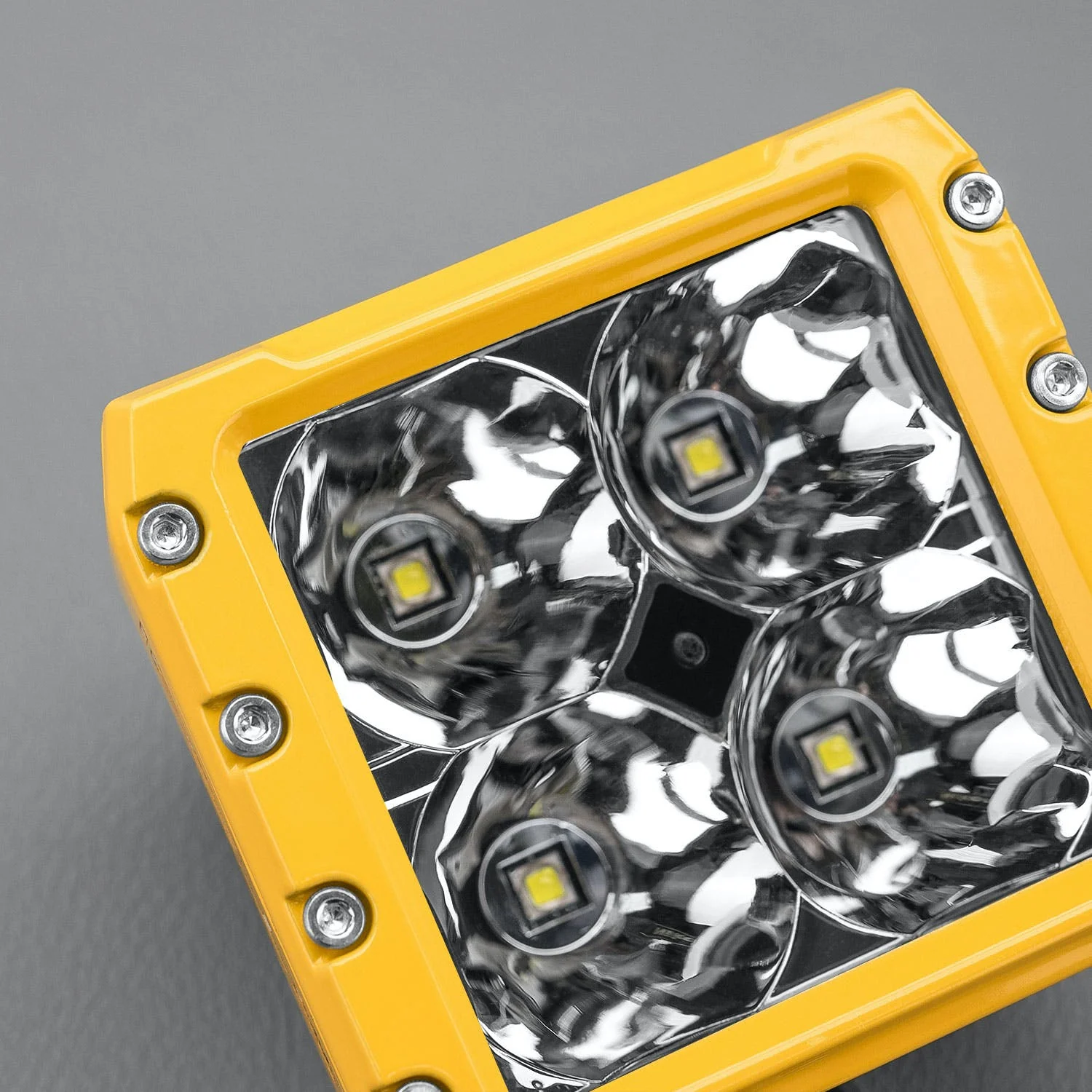

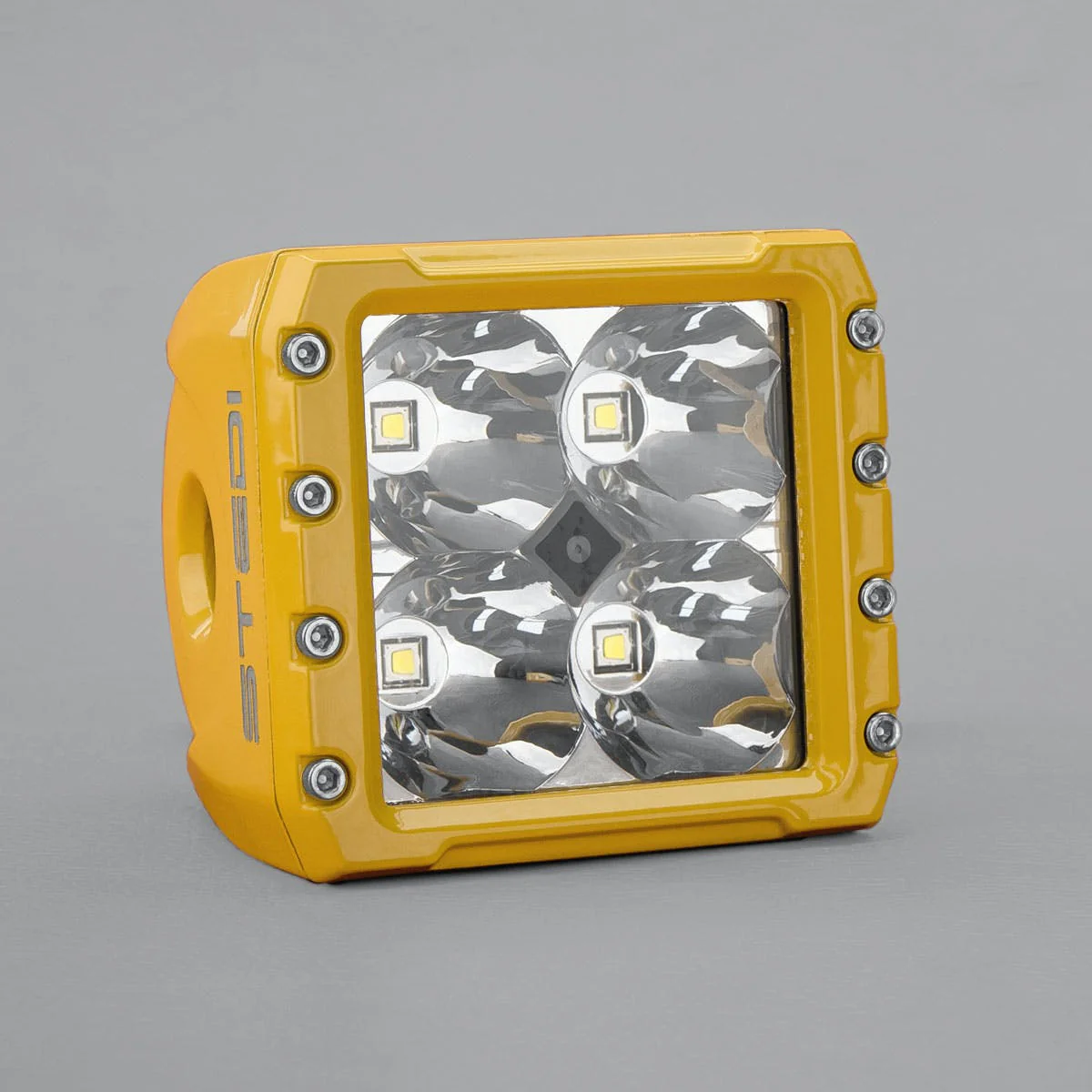

STEDI C-4 Industrial LED Light - Spot

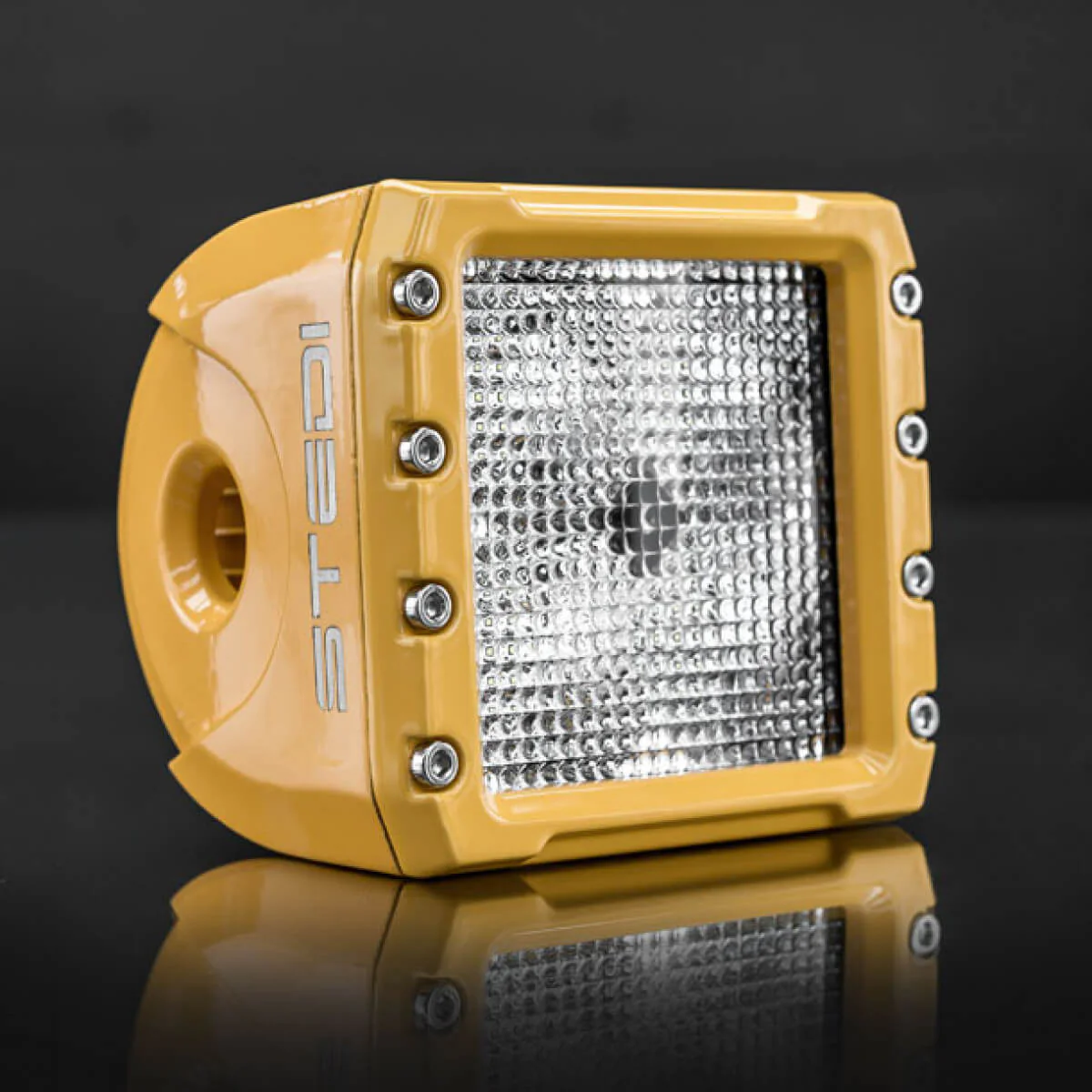

STEDI C-4 Industrial LED Light - Diffuse

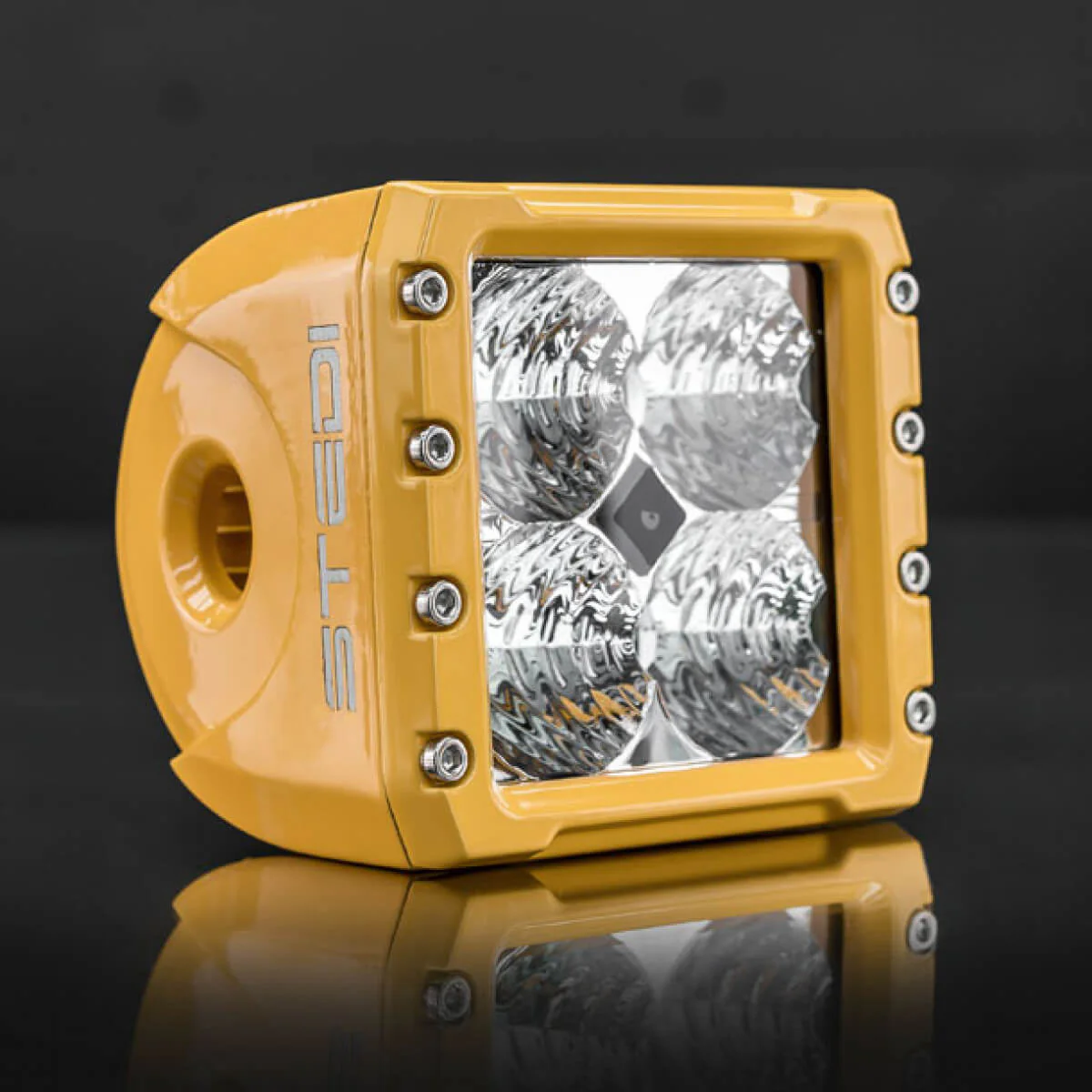

STEDI C-4 Industrial LED Light - Flood

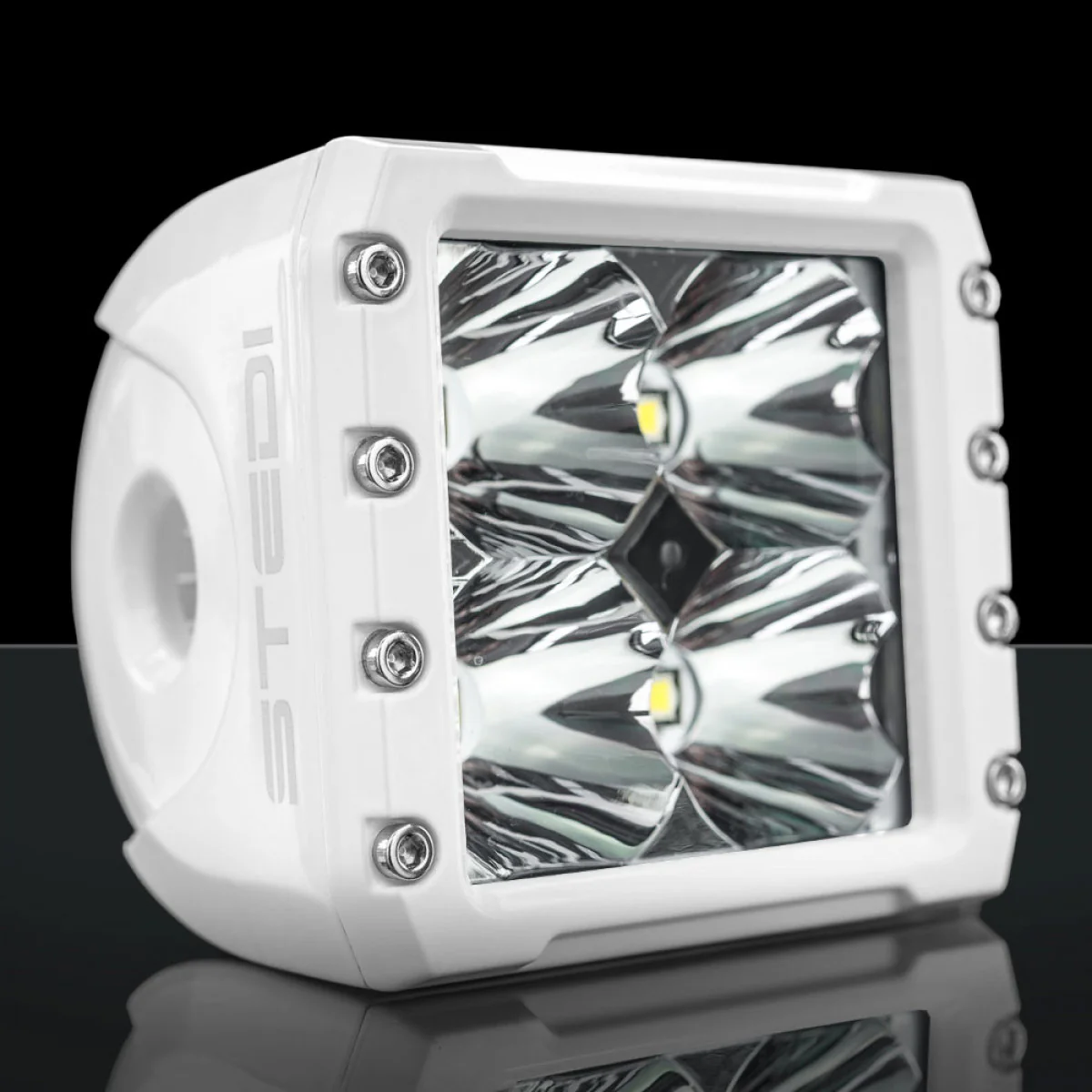

STEDI C-4 Marine White LED Light - Spot

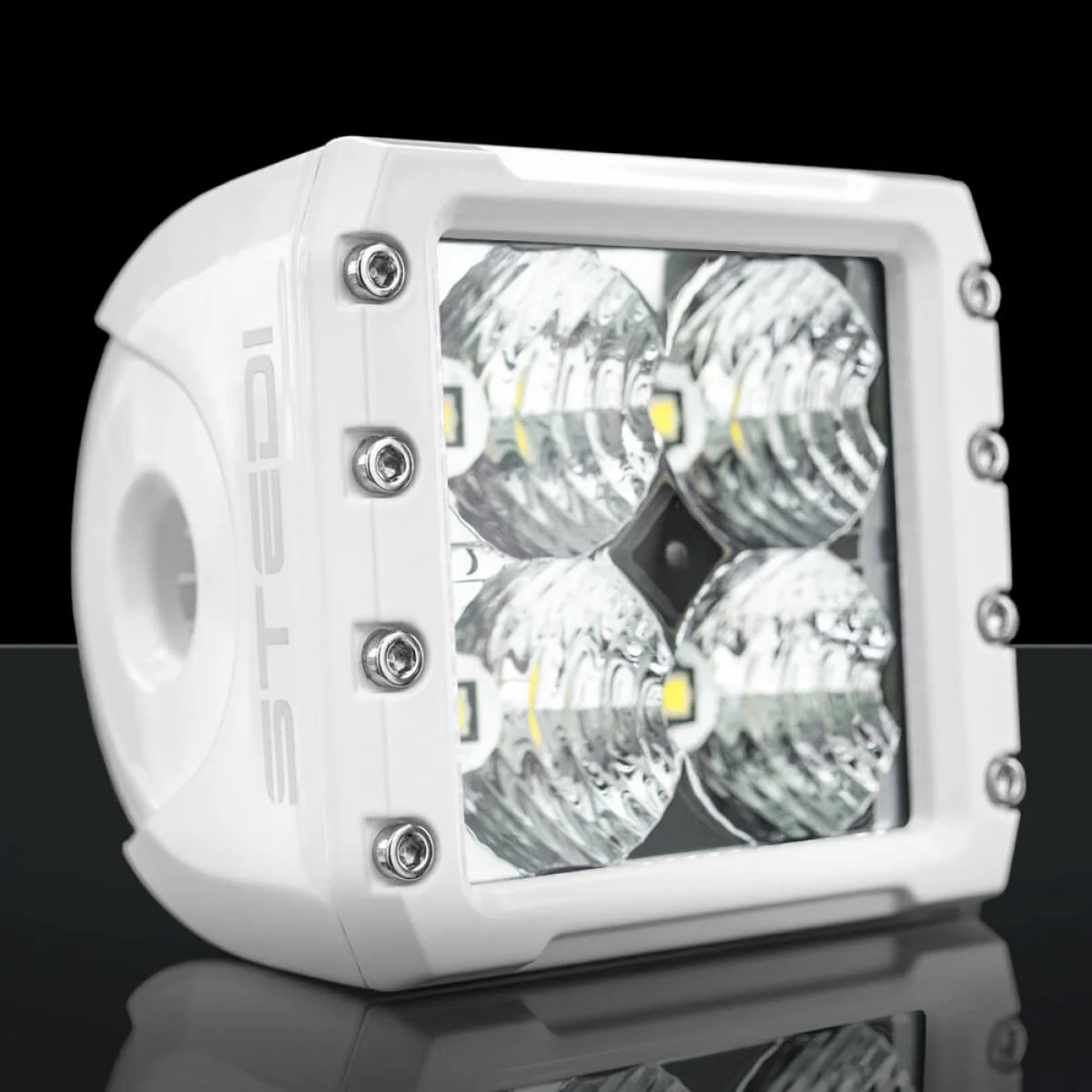

STEDI C-4 Marine White LED Light - Flood

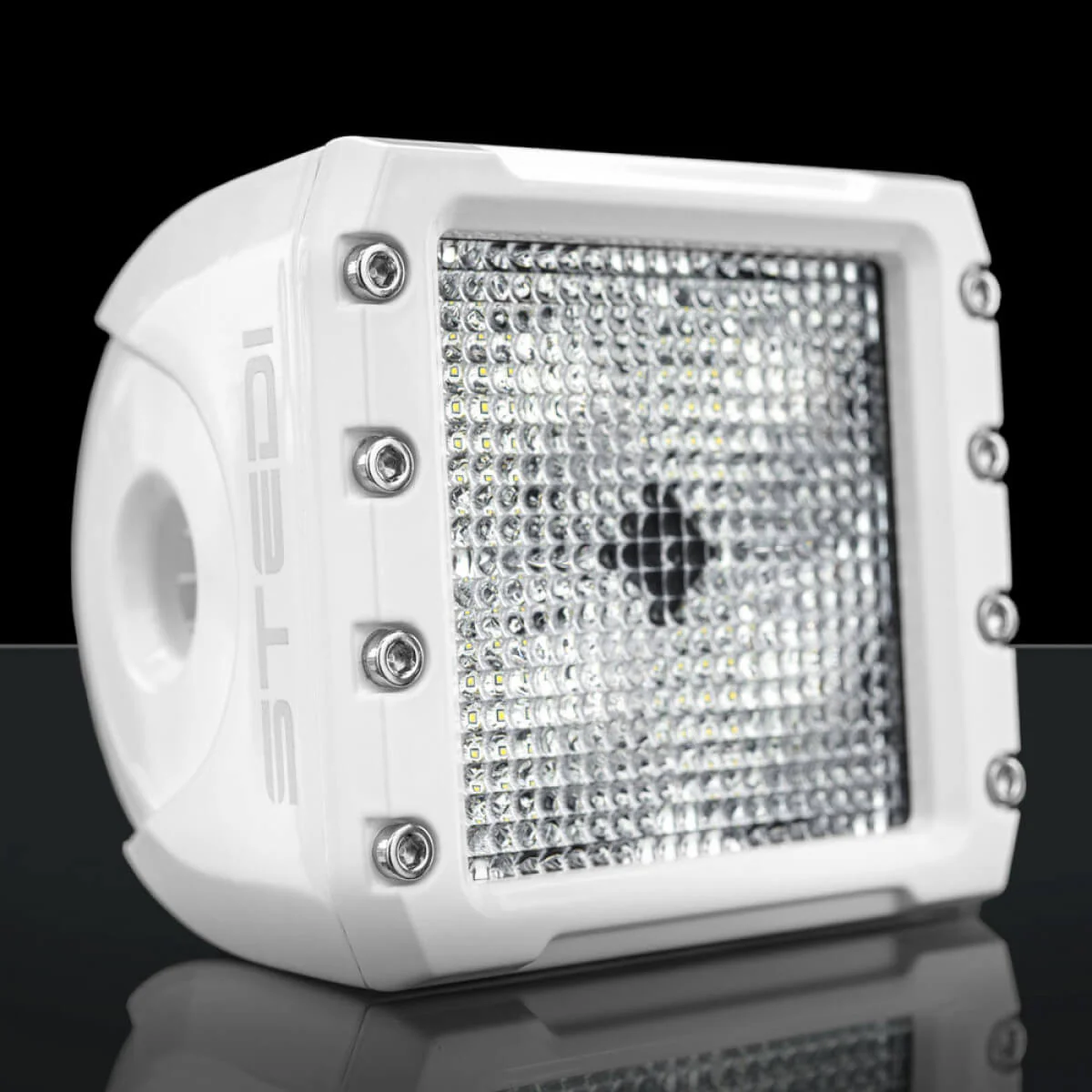

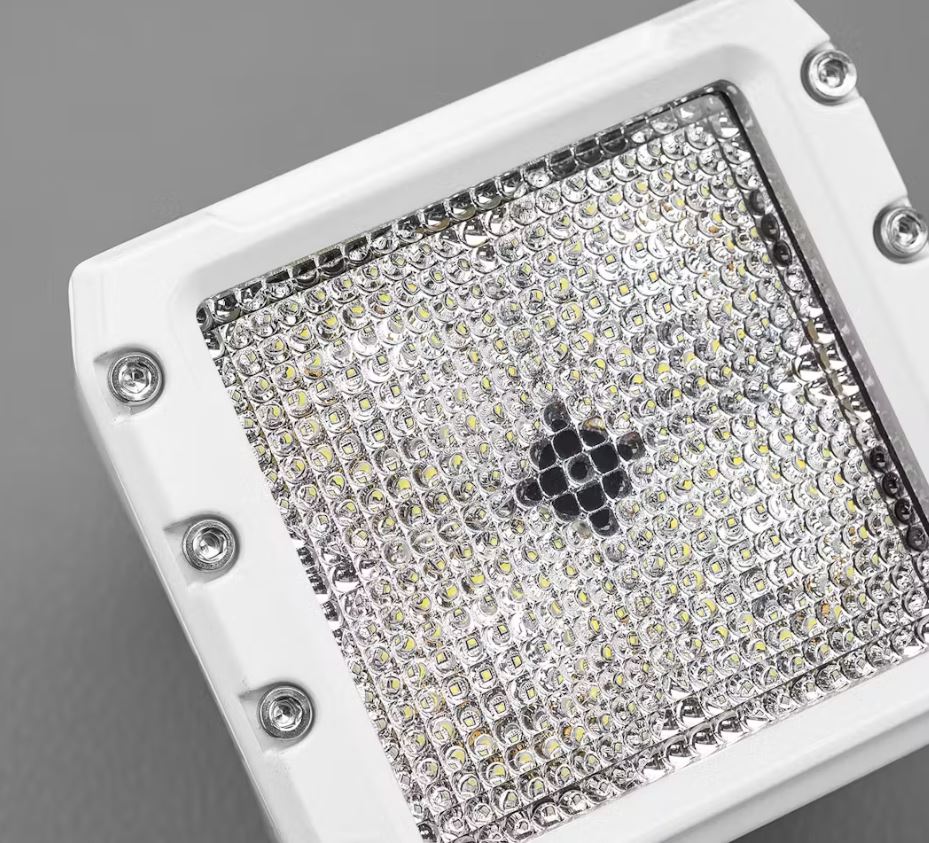

STEDI C-4 Marine White LED Light - Diffuse
