STEDI 7-inch Carbon Black LED Headlight (RHD Only)
- AS COOL AS OUR IRIS MODEL AND IT'S IN BLACK, WHAT'S NOT TO LOVE? OH DID WE MENTION THE PERFORMANCE? YEAH, YOU'RE GONNA LOVE THAT -
We know that is fits a large variety of vehicles including, Jeep CJ, Wrangler, Land Rover Defender, Toyota Landcruiser 75 Series, Nissan GQ Patrol, Harley Davidson Motorcycles, Mercedes Benz G Wagon & Kenworth Truck Model
DESCRIPTION
FINALLY A WORTHY 7" LED HEADLAMP
You've either heard about or tried the other disaster 7" LED kits on the market. Our Carbon LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our CARBON is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a full halo DRL, the CARBON is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs a 7" headlight (list of known compatible models in the description).
PERFORMANCE THAT SURPASSES THE VERY BEST
The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo DRL can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.
ADR COMPLIANT
The CARBON falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.

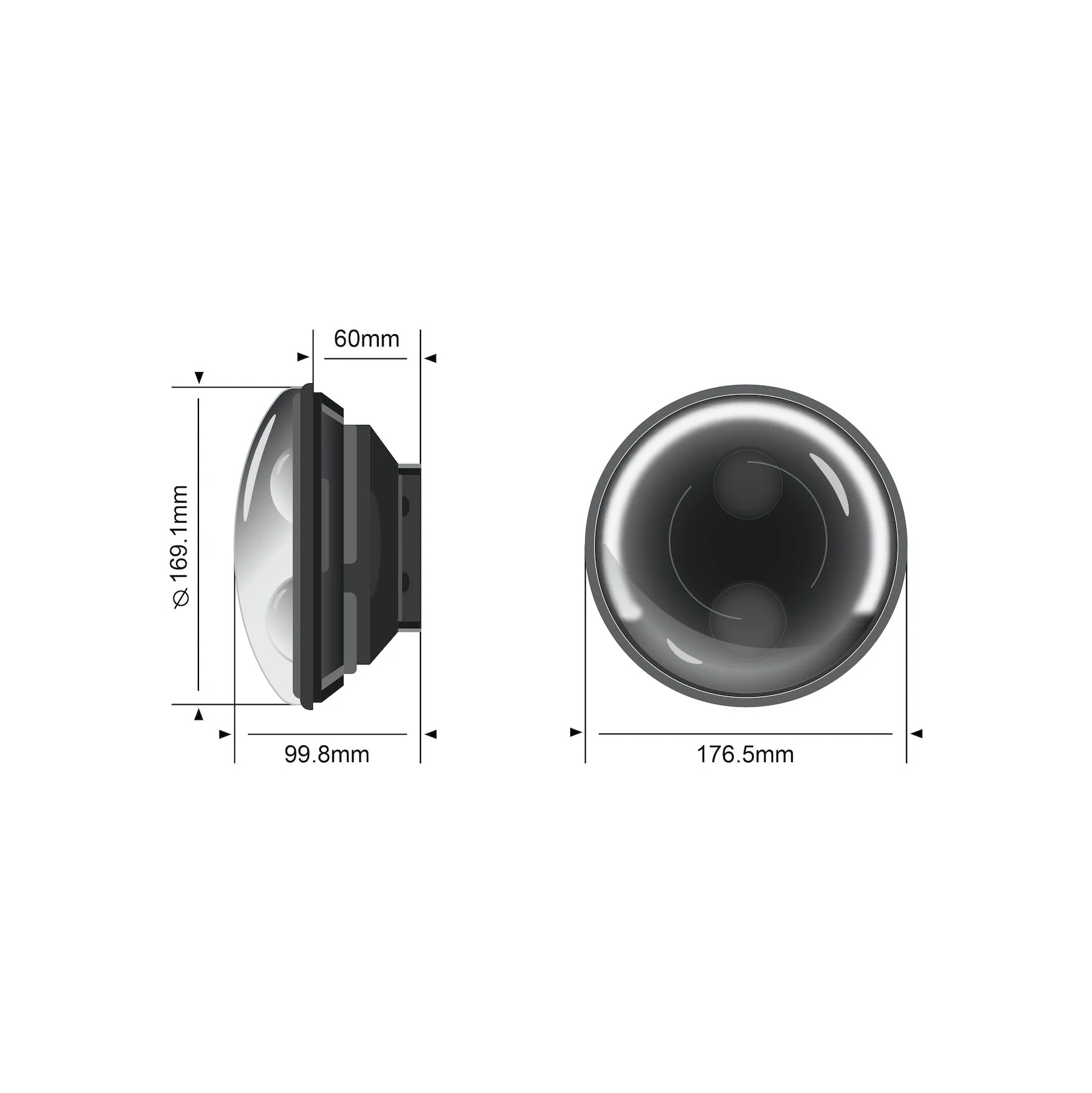

DIMENSIONS

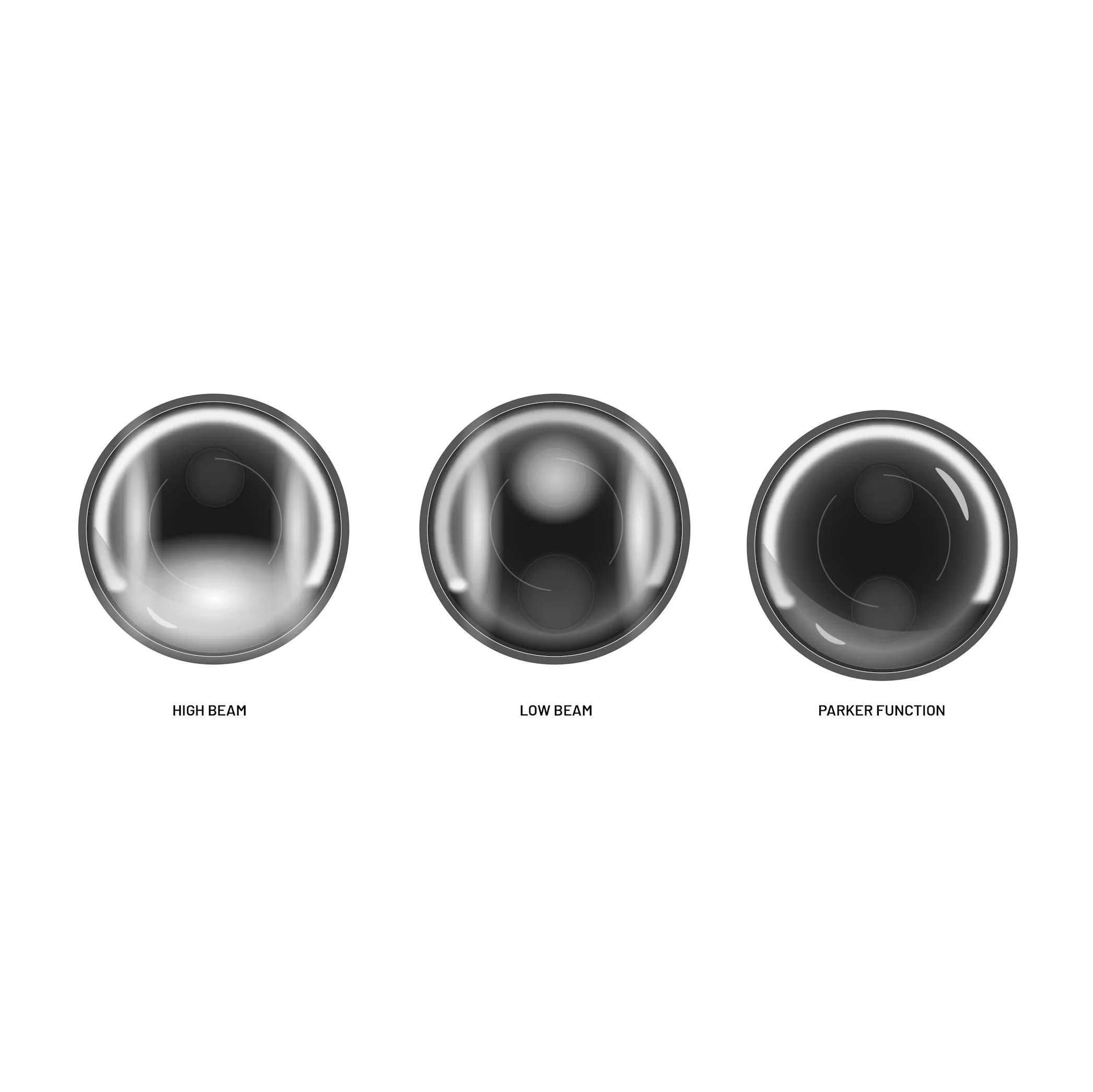

BEAM MODES
THE NITTY GRITTY

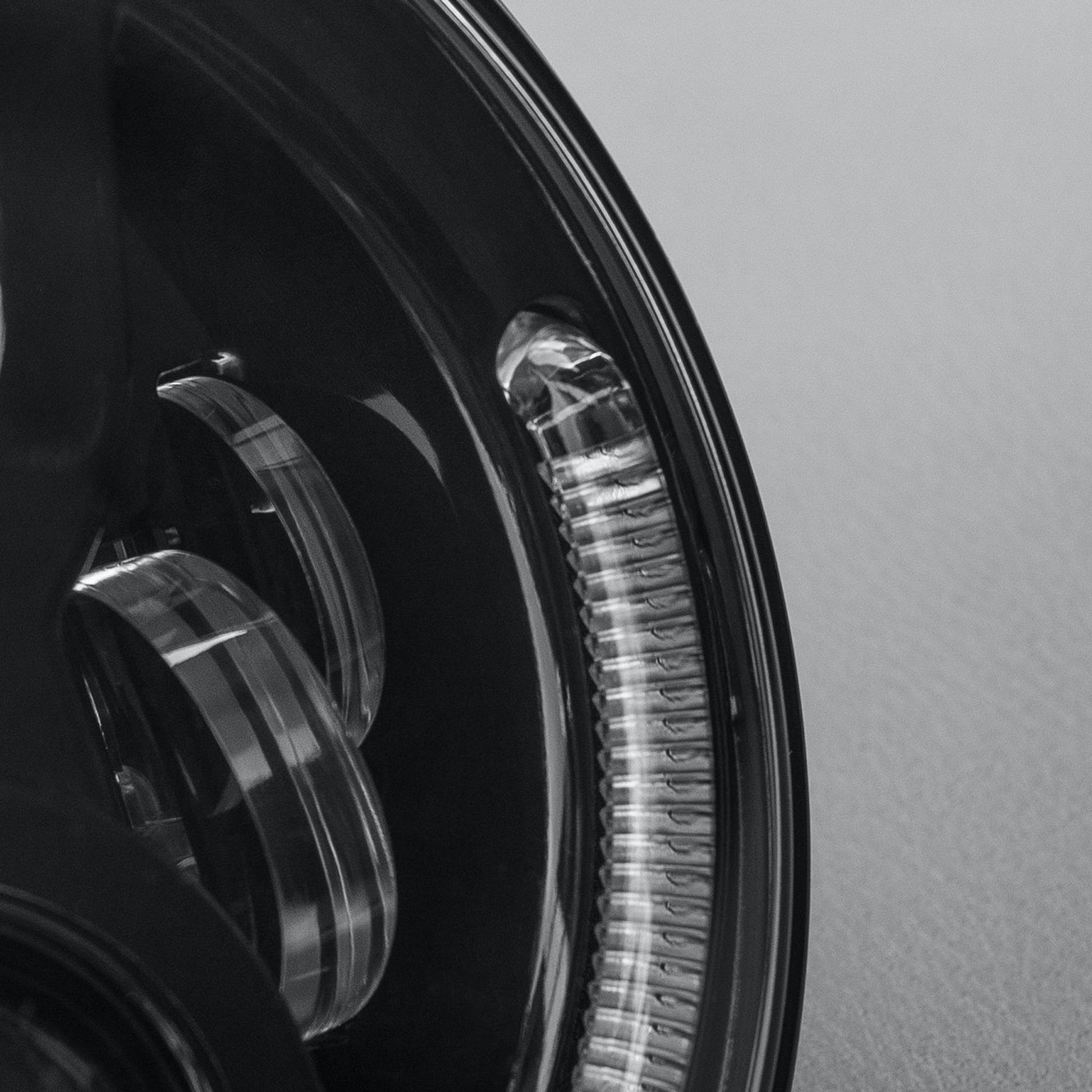

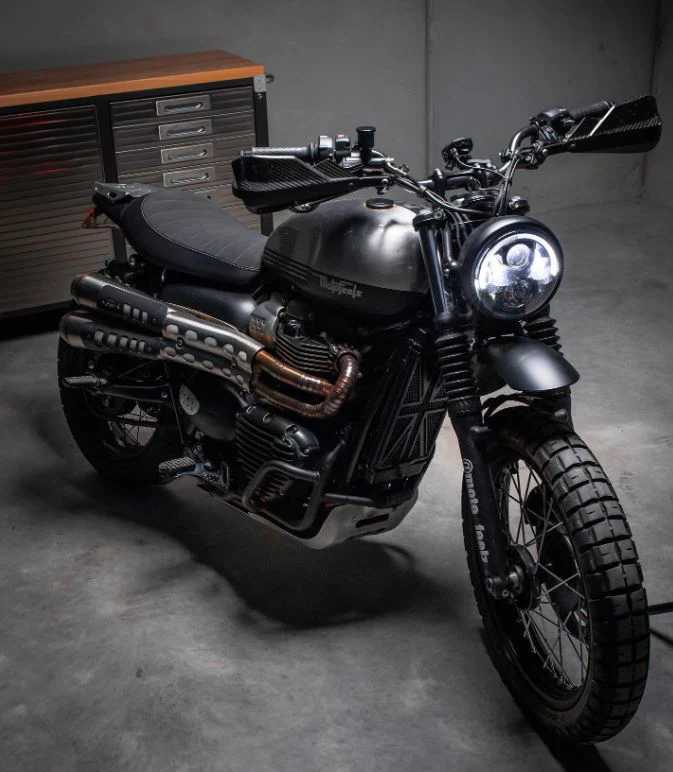

Our CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycle's light output. Complete with High and Low beam as well as a half LED halo ring DRL, the CARBON 7" is the perfect replacement for your existing headlight.
KEY PERFORMANCE METRICS

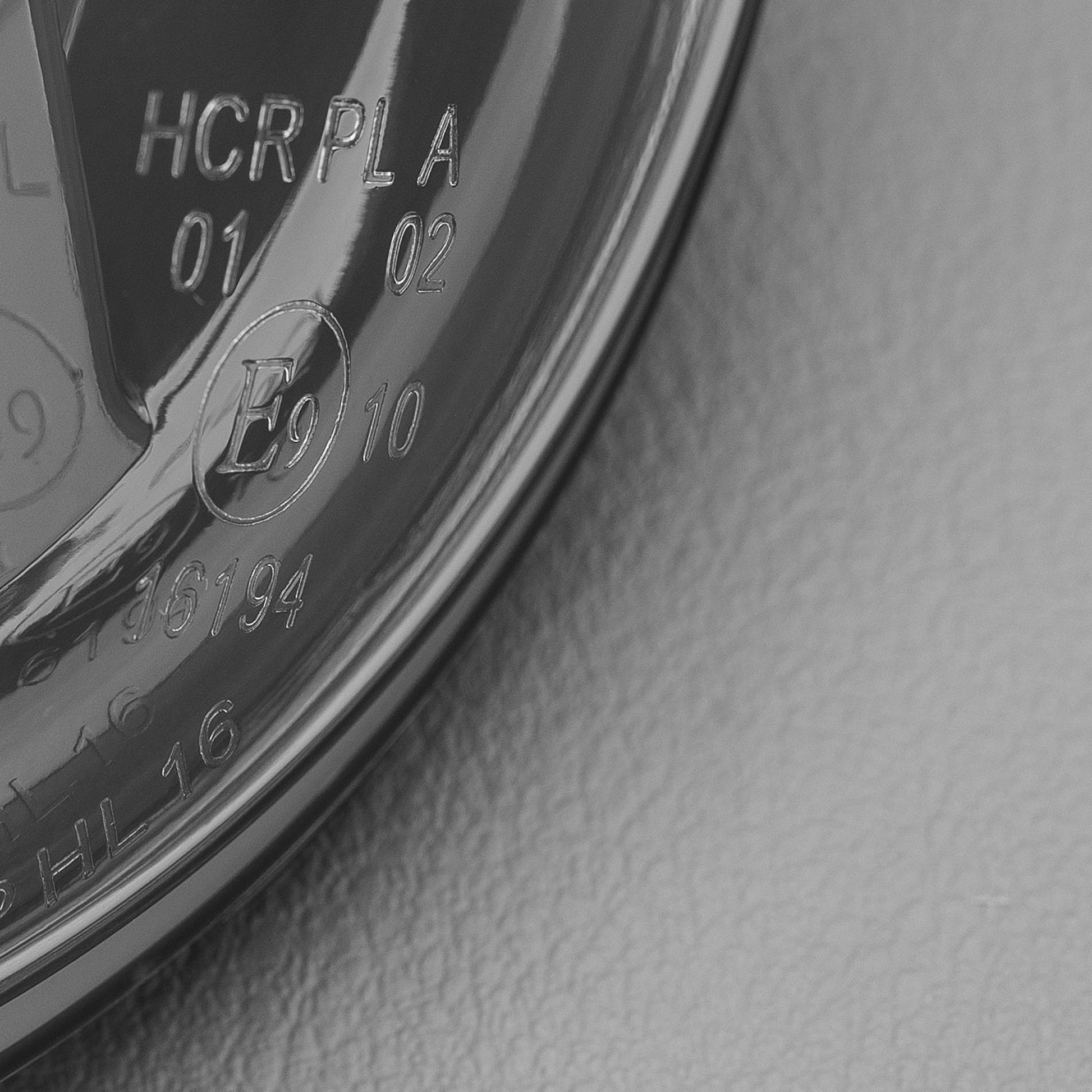

- ADR Approved E-Mark CE
- Proper Right Hand Drive Beam Geometry

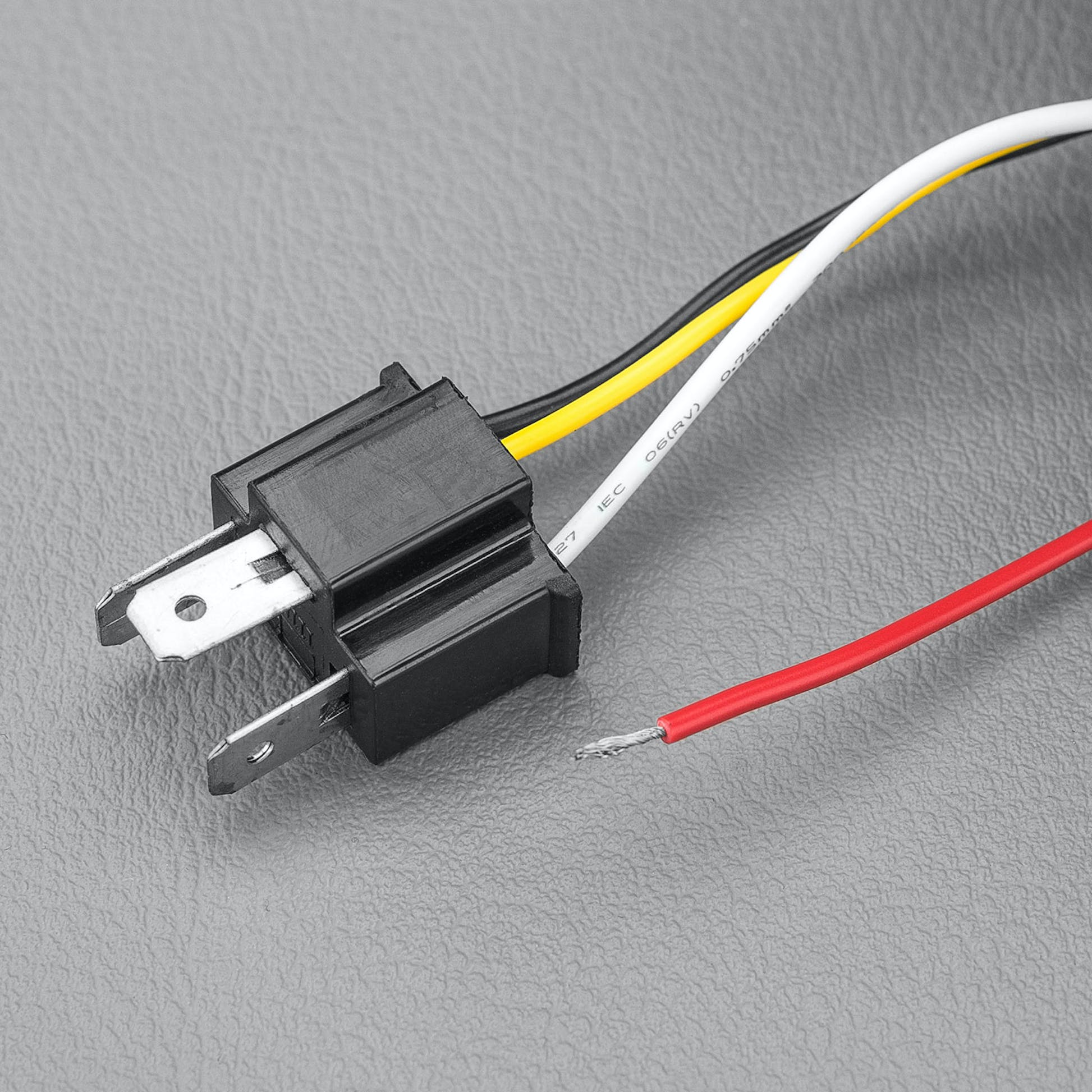

- H4 + H13 Adaptor
- High Beam 1 Lux @ 210m
- Low Beam 1 Lux @ 118m
PERFORMANCE BUILD QUALITY
- Anodised Polyester Powder-coat
- Lexan Poly-carbonate (PC) Lens refactor

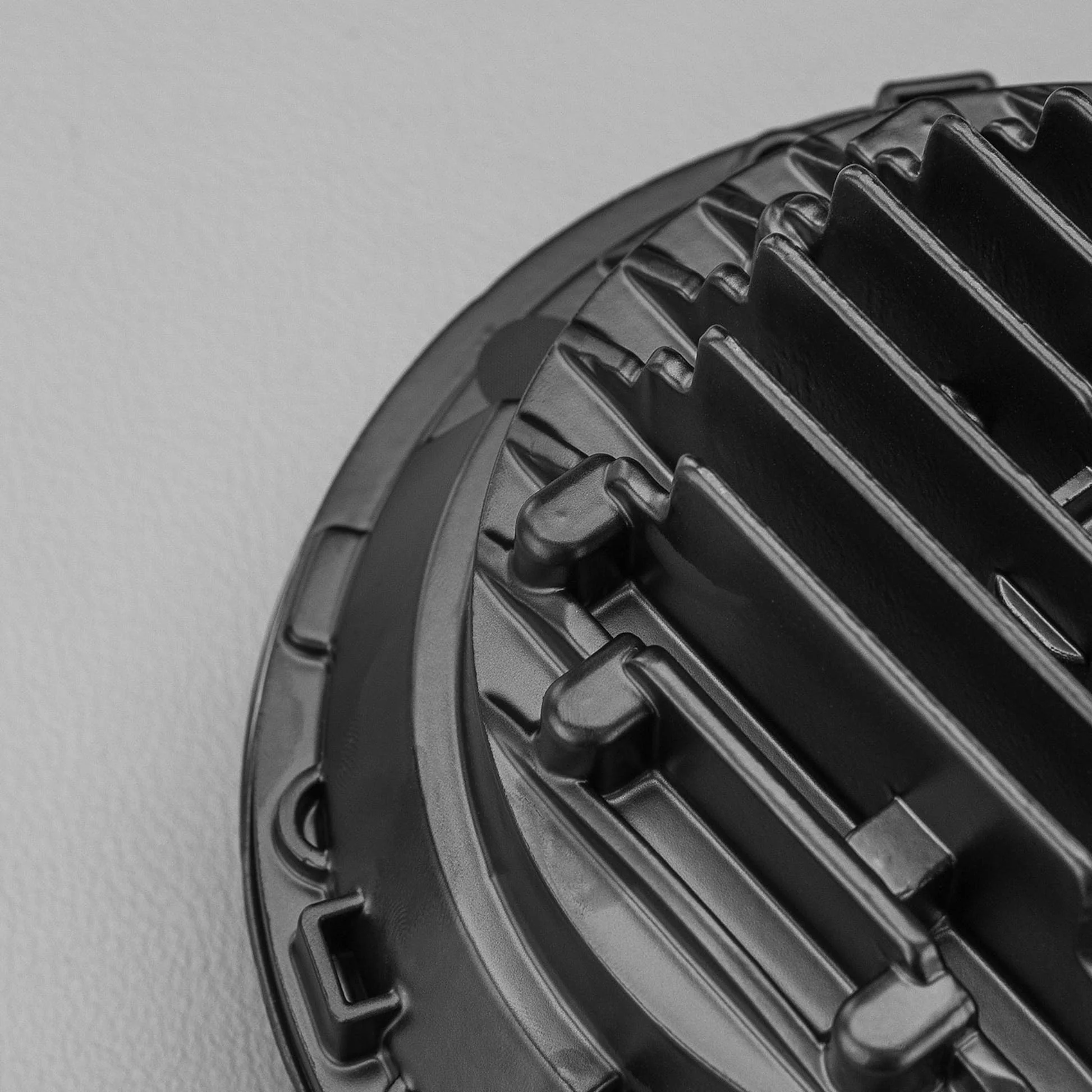

- Die-cast aluminium alloy (ADC12) Heat-Sink
- IP67 | Ingress Protection
- Shock Proof, Waterproof and UV Shielded
- Protected against Reverse Polarity and Voltage / Current surges
- Warranty | 2 Years
COMPATIBLE MODELS
- 1955-1983 Jeep CJ-5
- 1976-1986 Jeep CJ-7
- 1981-1985 Jeep CJ-8
- 1997-2006 Jeep Wrangler (TJ)

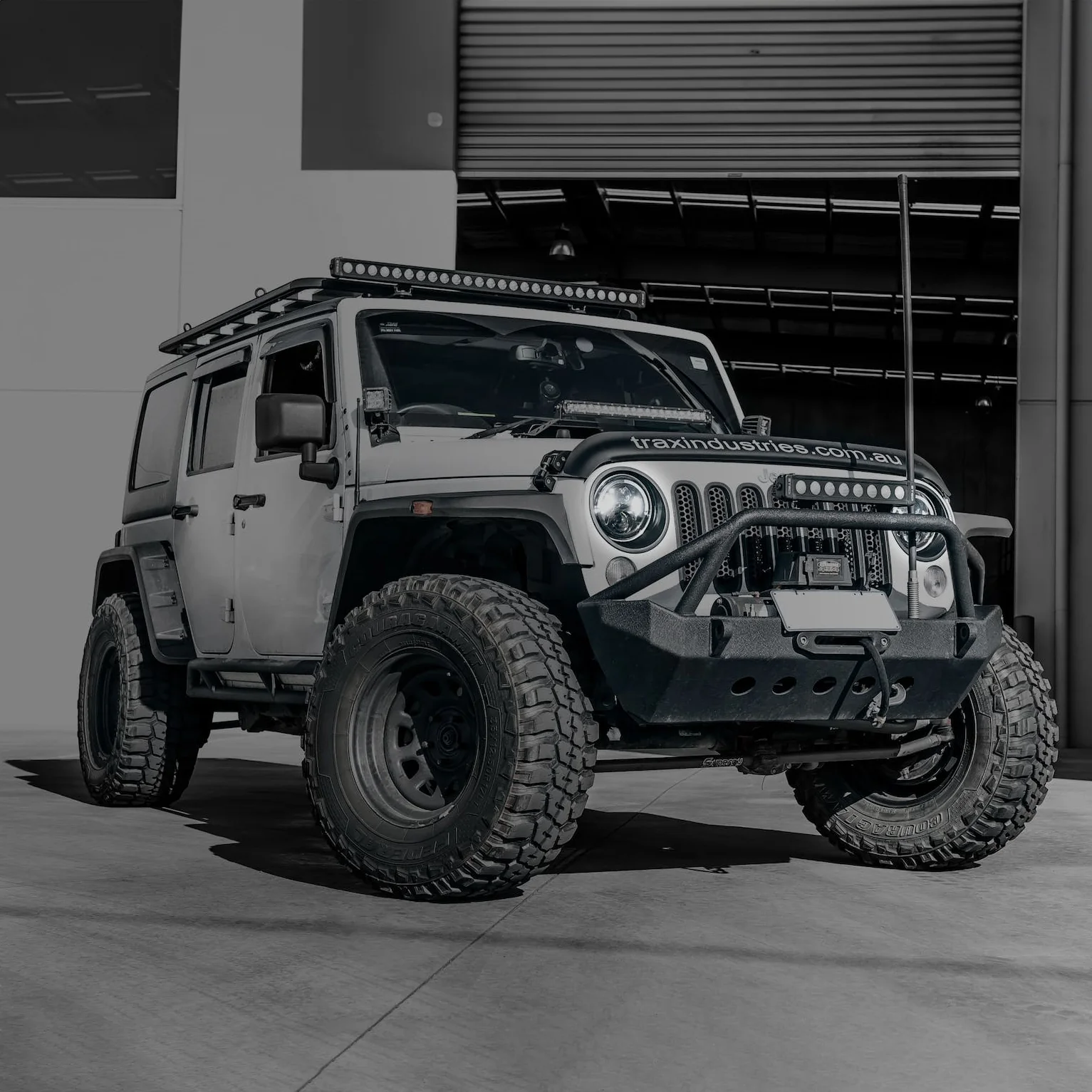

- 2007-2017 Jeep Wrangler 2-Door (JK)
- 2007-2017 Jeep Wrangler Unlimited 4-Door (JK)
- Land Rover Defender
- 1982 - 1991 Mitsubishi Pajero (L040)
- 70 Series Toyota Landcruiser with round headlamp (Needs additional H4 canbus to resolve negative switching)
- 60 Series Toyota Landcruiser with round headlamp (Needs additional H4 canbus to resolve negative switching
- Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
- GQ Patrol

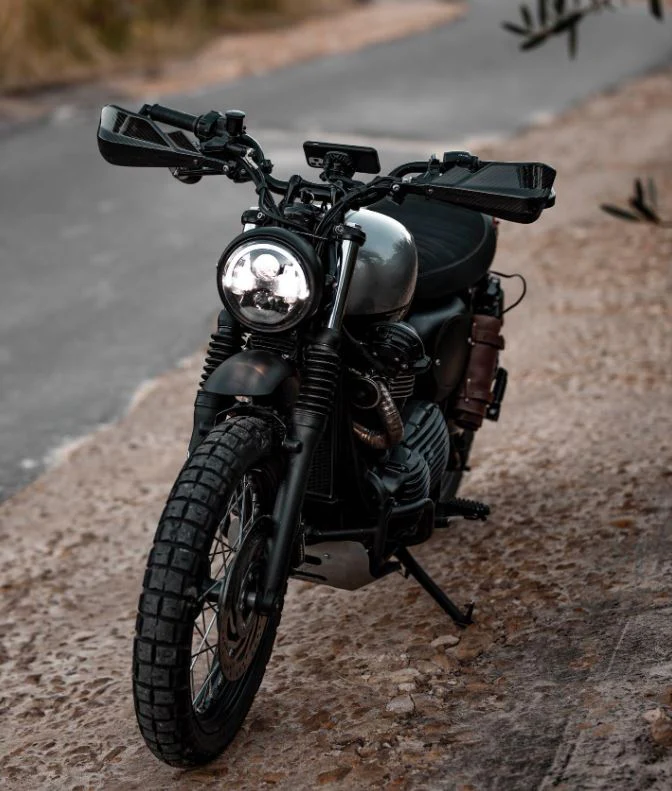

- Harley Davidson Motorcycles
- Kenworth Trucks with 7 inch round headlight
TECH SPECS
| LED | High Beam: 2x 10w XML-2 LED Low Beam: 2x 15w LED DRL: 30x 1.5w Osram |
| RAW LUMENS | High Beam: 1800Lm Low Beam: 1250Lm DRL: 150Lm |
| AMP DRAW | High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v DRL: 0.2a @ 13.6v |
| LIFESPAN | 50,000 Hours |
| INGRESS PROTECTION | IP67 |
| OPERATING TEMPERATURE | -30°C~+60°C |
| LENS MATERIAL | LEXAN Polycarbonate |
| COLOUR TEMP | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| PEAK BEAM DISTANCE @ 1 LUX | High Beam: 210m Low Beam: 118m DRL: 8m |
| WEIGHT (EACH) | 1.140kg each |
| DROP IN REPLACEMENT FOR |
#6014, 6015, 6016, H6024 and Par 56 headlamp designs |
INSTALLATION GUIDE
WHAT'S IN THE BOX
- 1 x 7 inch STEDI CARBON CHARCOAL LED Headlight
